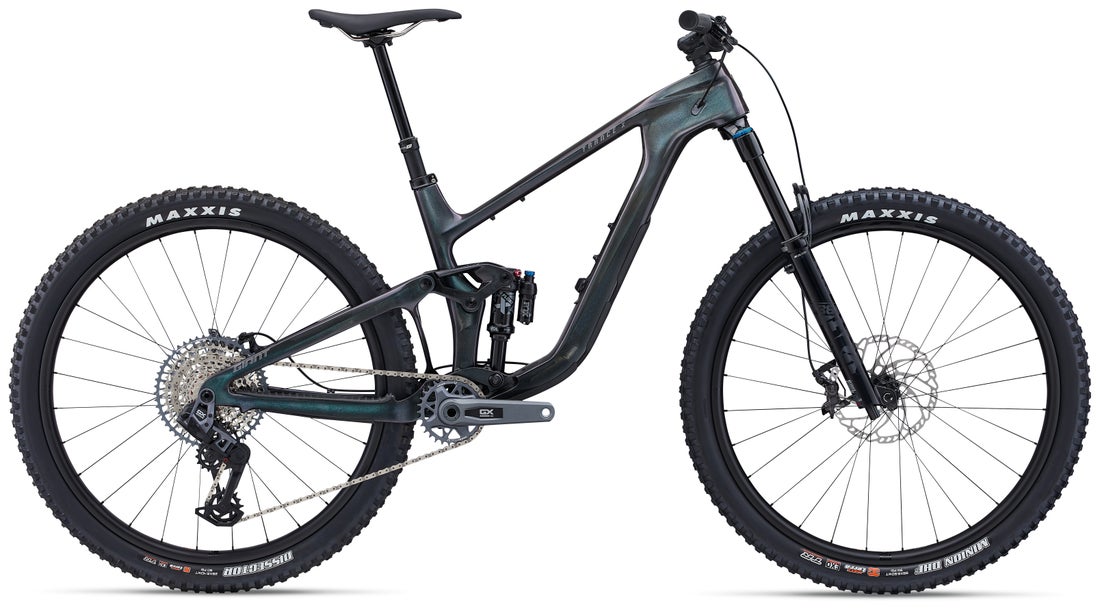

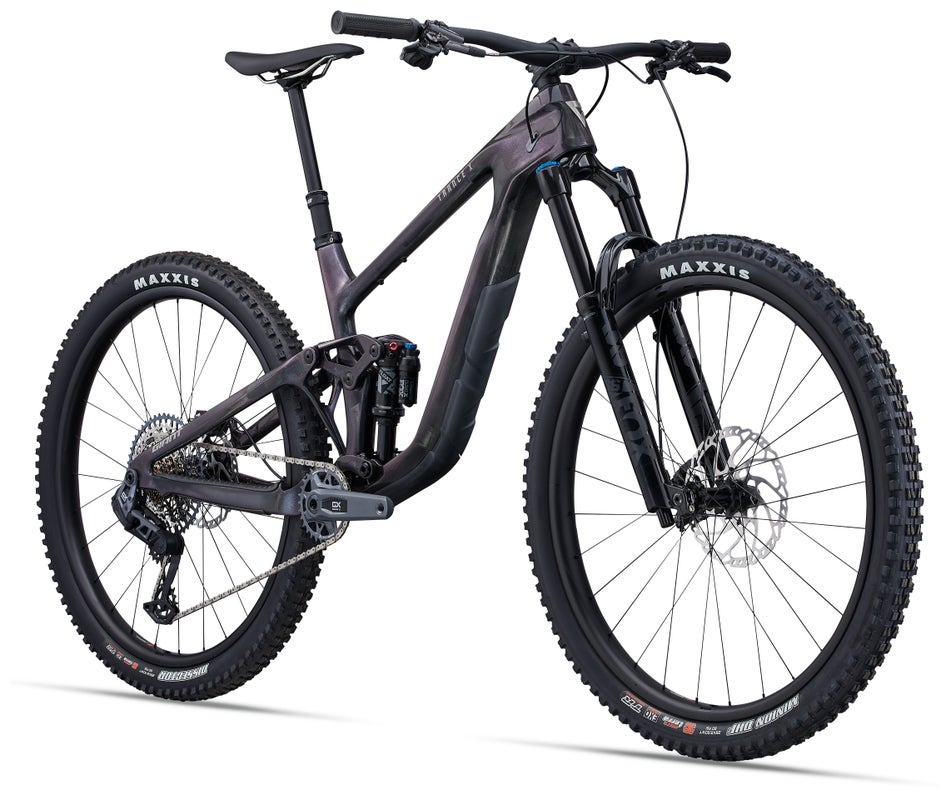

MY24 Trance X Advanced 1 - Raw Carbon / Arctic Light

$9,499.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size Small Medium Large X-Large

Please note, Giant & Liv Bikes are in-store pick up only.

If shipping is required,

Please give us a call (03) 9369 9666

Float up technical climbs and sail down chunky descents. This all-new, full-composite trail bike gives you 140mm of smooth Maestro rear suspension and all sorts of adjustability. You can dial in frame geometry and switch the rear wheel size for the terrain.

Key Performance Factors

More Travel

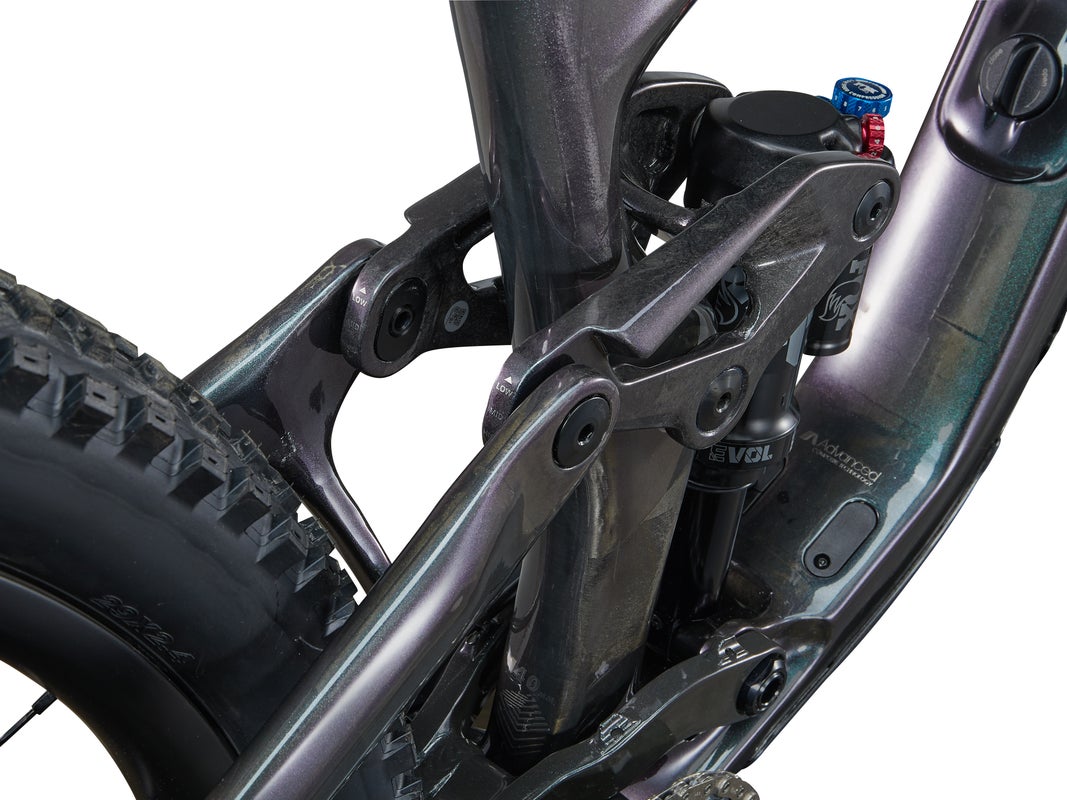

New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.

Adjustable trail geometry

A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.

Rear wheel options

All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimizes stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favor this “mullet” setup for riding steep, technical terrain.

Sizes

S, M, L, XL
Colours

Arctic Light/Chrome

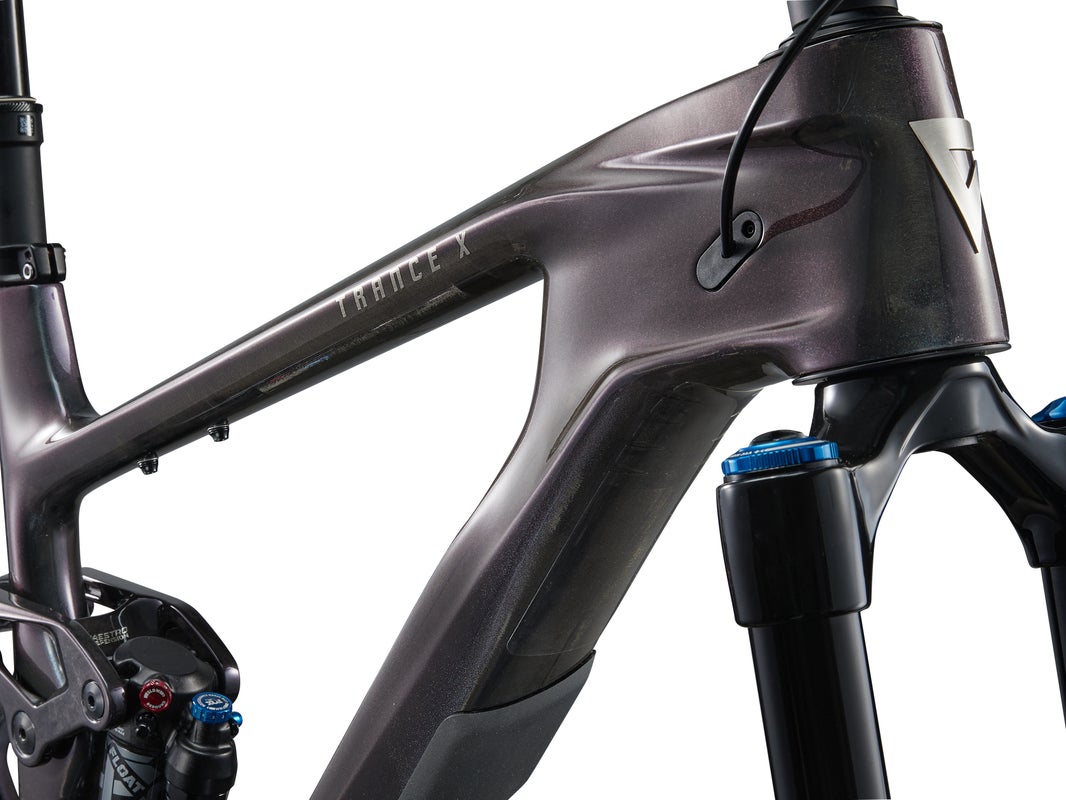

Frame

Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage

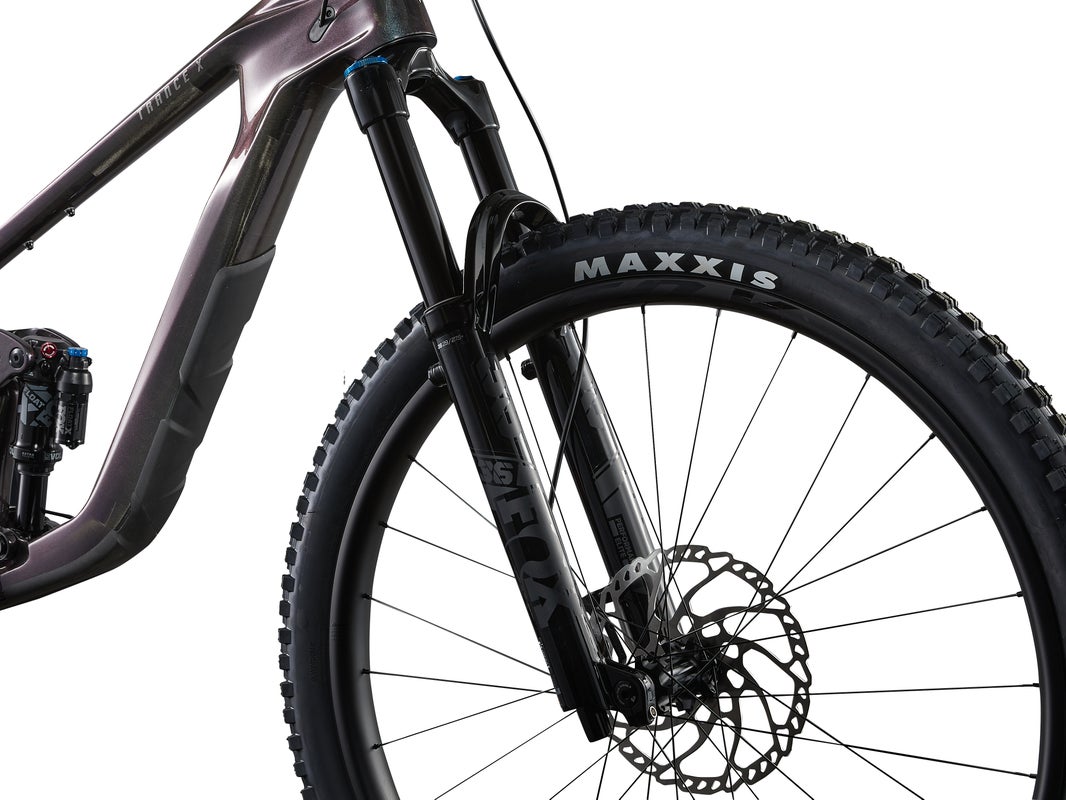

Fork

Fox 36 Performance Elite, 150mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset

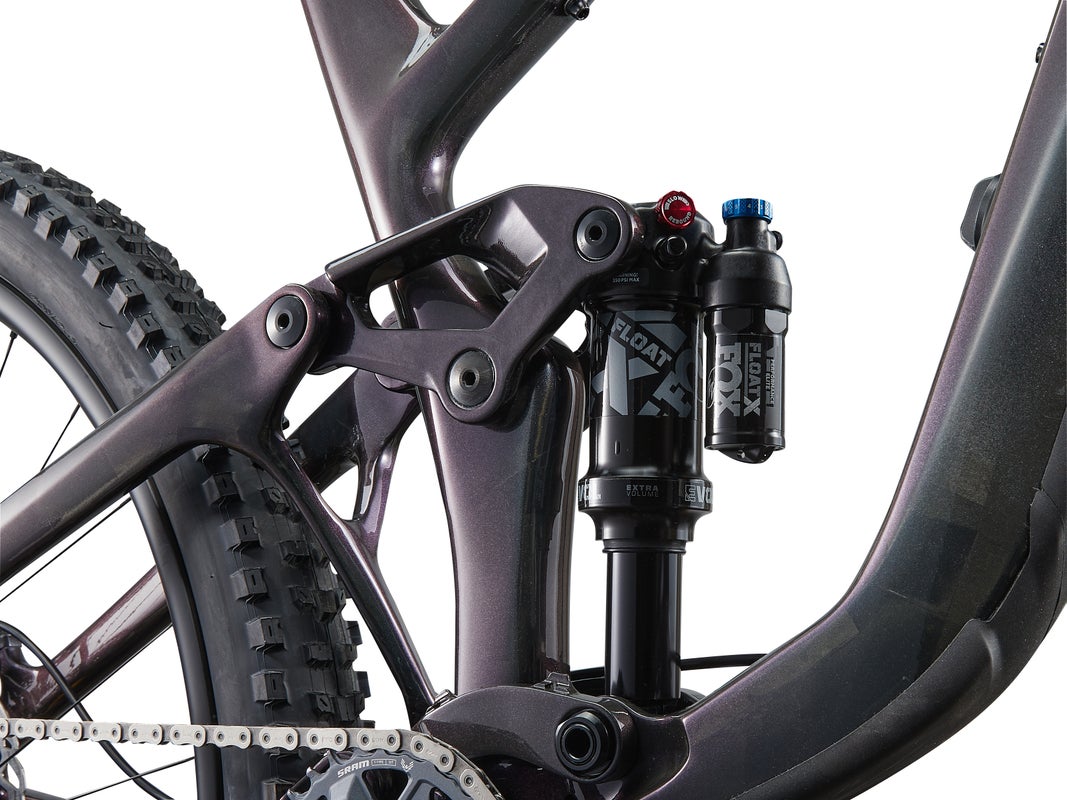

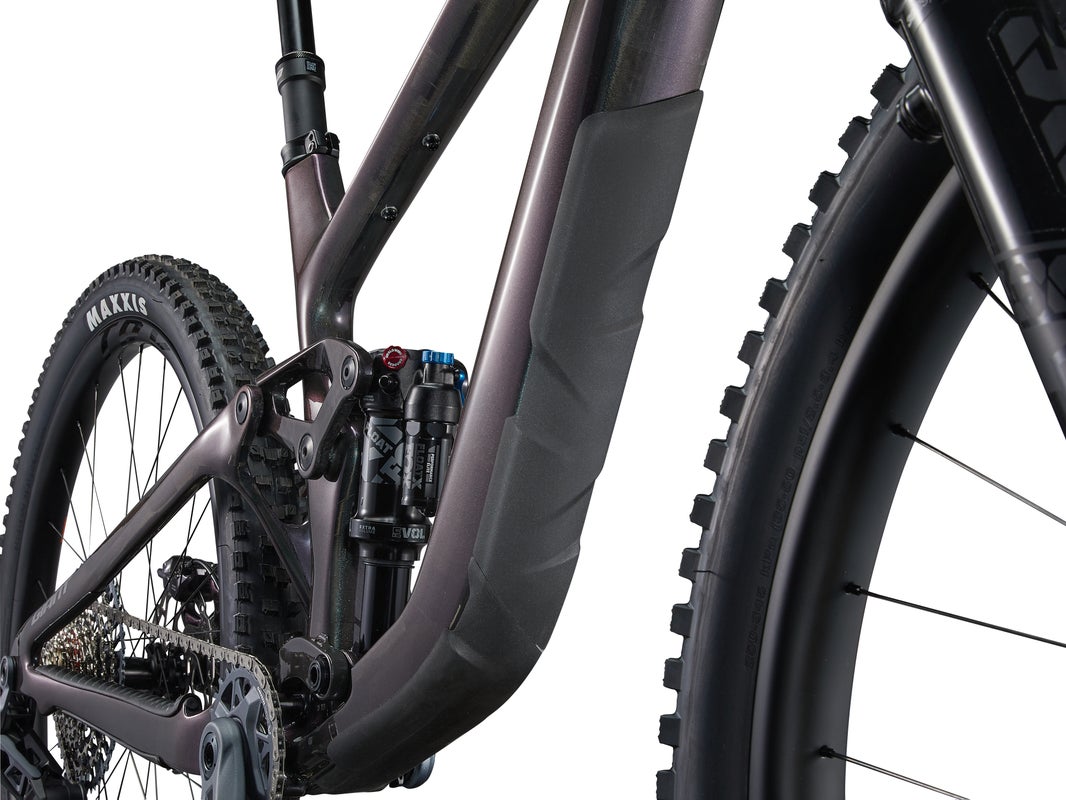

Shock

Fox Float X Performance Elite, two-position LSC adjust, 185/52.5, custom tuned for Giant

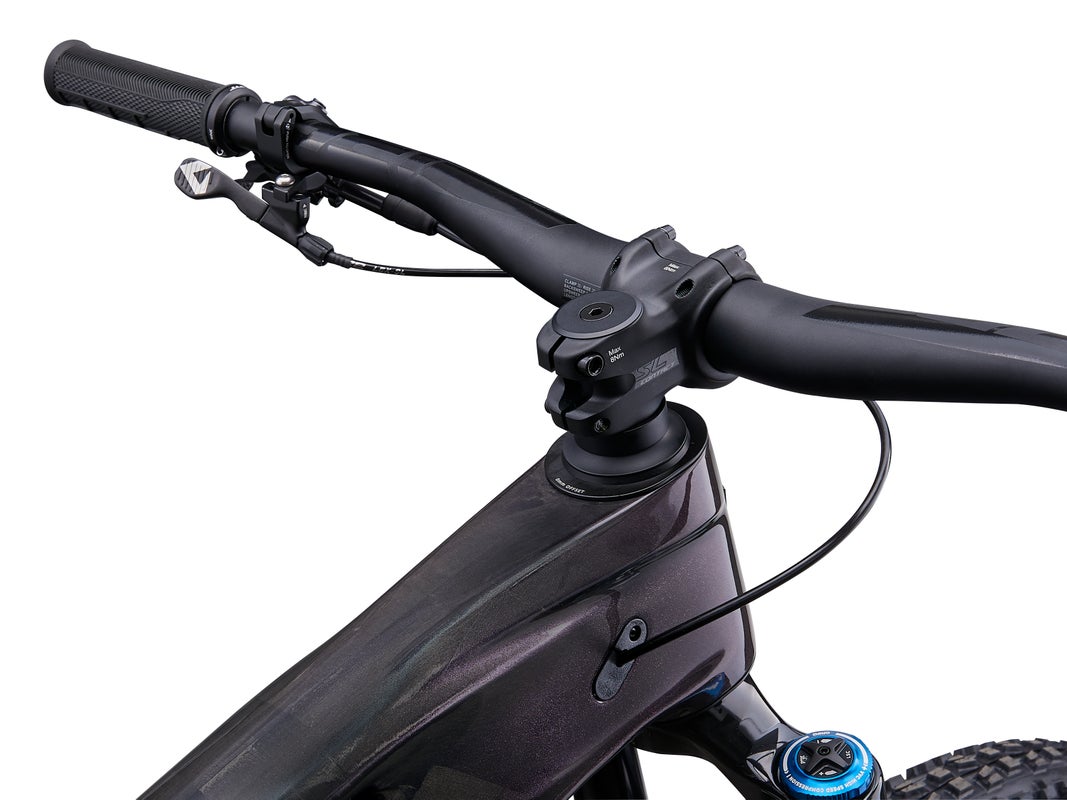

Handlebar

Giant Contact SL TR35, alloy, 35mm
Grips

Giant Tactal Pro Single Lock-On, 132x35mm
Stem

Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm

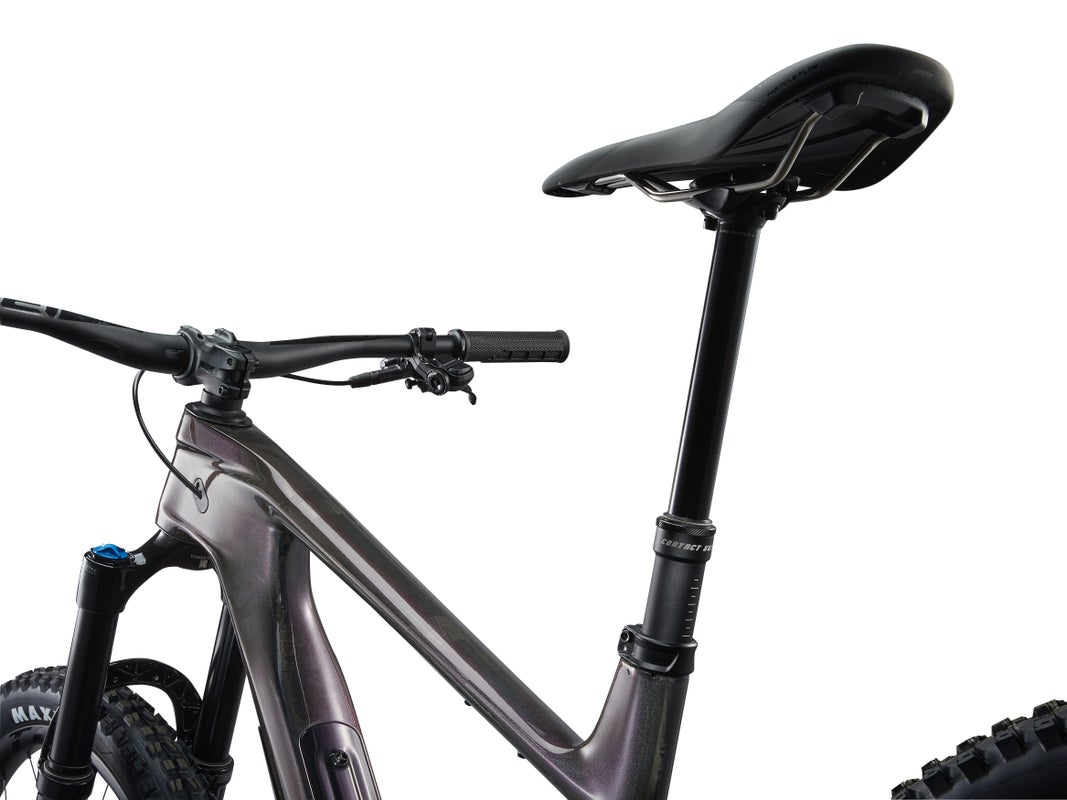

Seatpost

Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle

Giant Romero SL
Pedals

N/A
Shifters

SRAM AXS Pod, 1x12
Front Derailleur

N/A

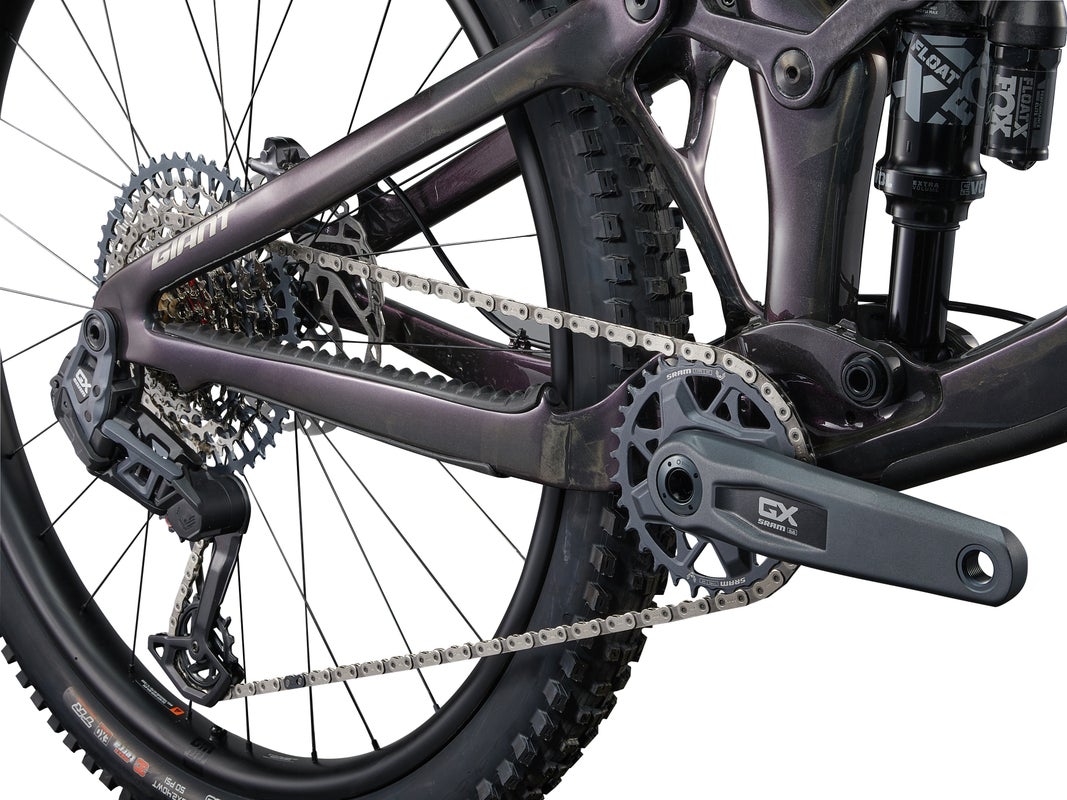

Rear Derailleur

SRAM GX Eagle AXS, T-Type
Brakes

Shimano Deore XT BR-M8120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers

Shimano Deore XT BL-M8100
Cassette

SRAM GX, T-Type, 10x52
Chain

SRAM GX, T-Type
Crankset

SRAM GX, T-Type, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket

SRAM DUB, Press Fit
Rims

Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology
Hubs

[F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, XD driver body
Spokes

Sapim, 28, straight pull, DBL Technology
Tires

[F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless
Extras

Tubeless prepared, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
