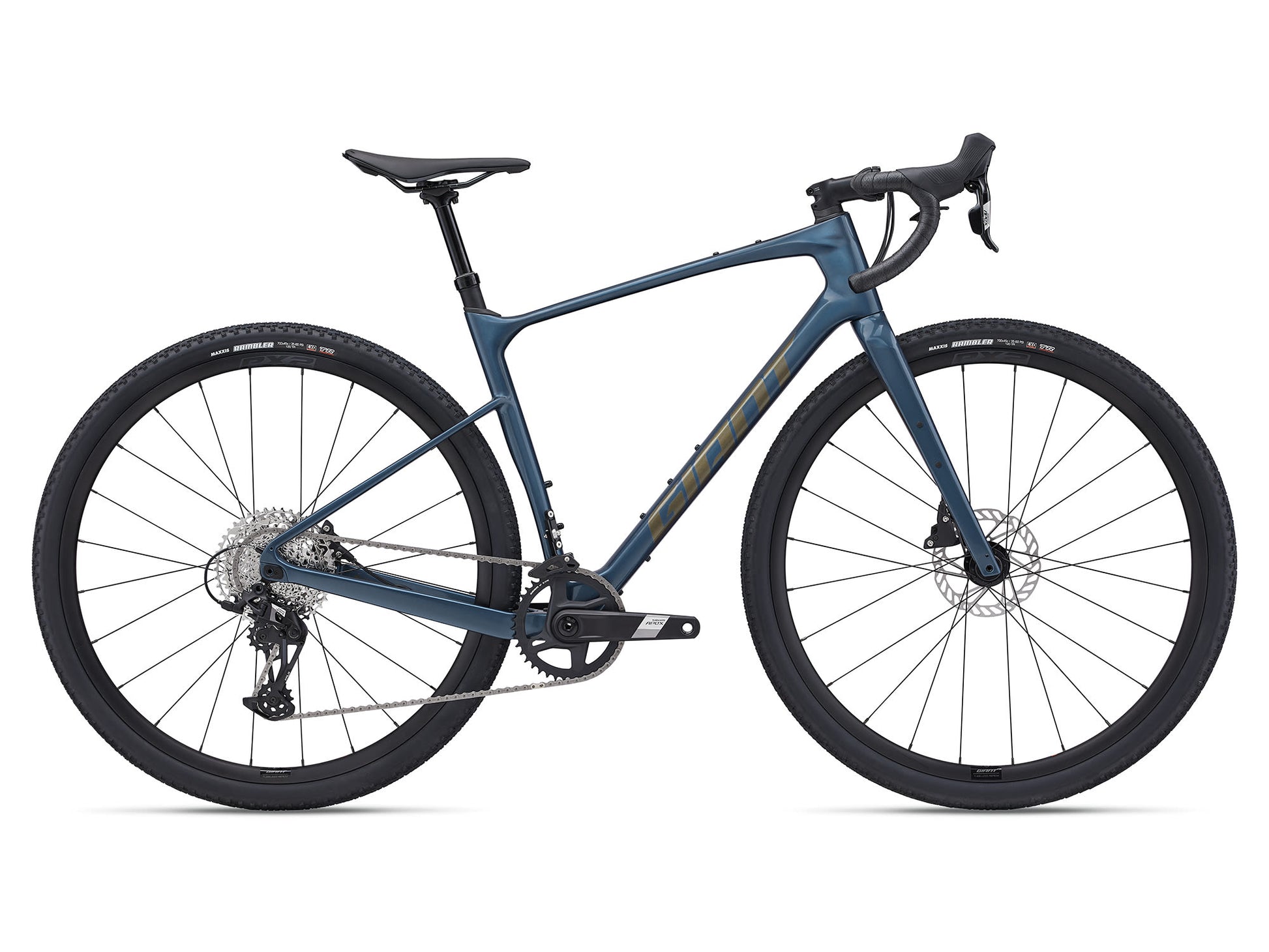

Giant revolt advanced 1 (2024) - blue ashes

Giant revolt advanced 1 (2024) - blue ashes

$3,999.00
$3,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size

Please note, Giant & Liv Bikes are in-store pick up only.

If shipping is required,

Please give us a call (03) 9369 9666

ROUGH ROADS, GRAVEL OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. THE LIGHTWEIGHT, SMOOTH-RIDING COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.

KEY PERFORMANCE FACTORS

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seat stays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seat post work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seat post for maximum compliance.

SPECIFICATIONS

  • Sizes
    XS, S, M, M/L, L, XL
  • Colours
    Blue Ashes
  • Frame
    Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
  • Fork
    Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Shock
    N/A
  • Handlebar
    Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Stem
    Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Seatpost
    Giant Contact Switch, dropper, 30.9mm XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm
  • Saddle
    Giant Approach
  • Pedals
    N/A
  • Shifters
    SRAM Apex 1, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM Apex XPLR
  • Brakes
    SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    SRAM Apex hydraulic
  • Cassette
    SRAM Apex, 12-speed, 11x44
  • Chain
    SRAM Apex D1
  • Crankset
    SRAM Apex D1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant P-X2 Disc wheelset, alloy
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tires
    Maxxis Rambler, 700x45c, tubeless
  • Extras
    Giant 1x chain guide, tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
