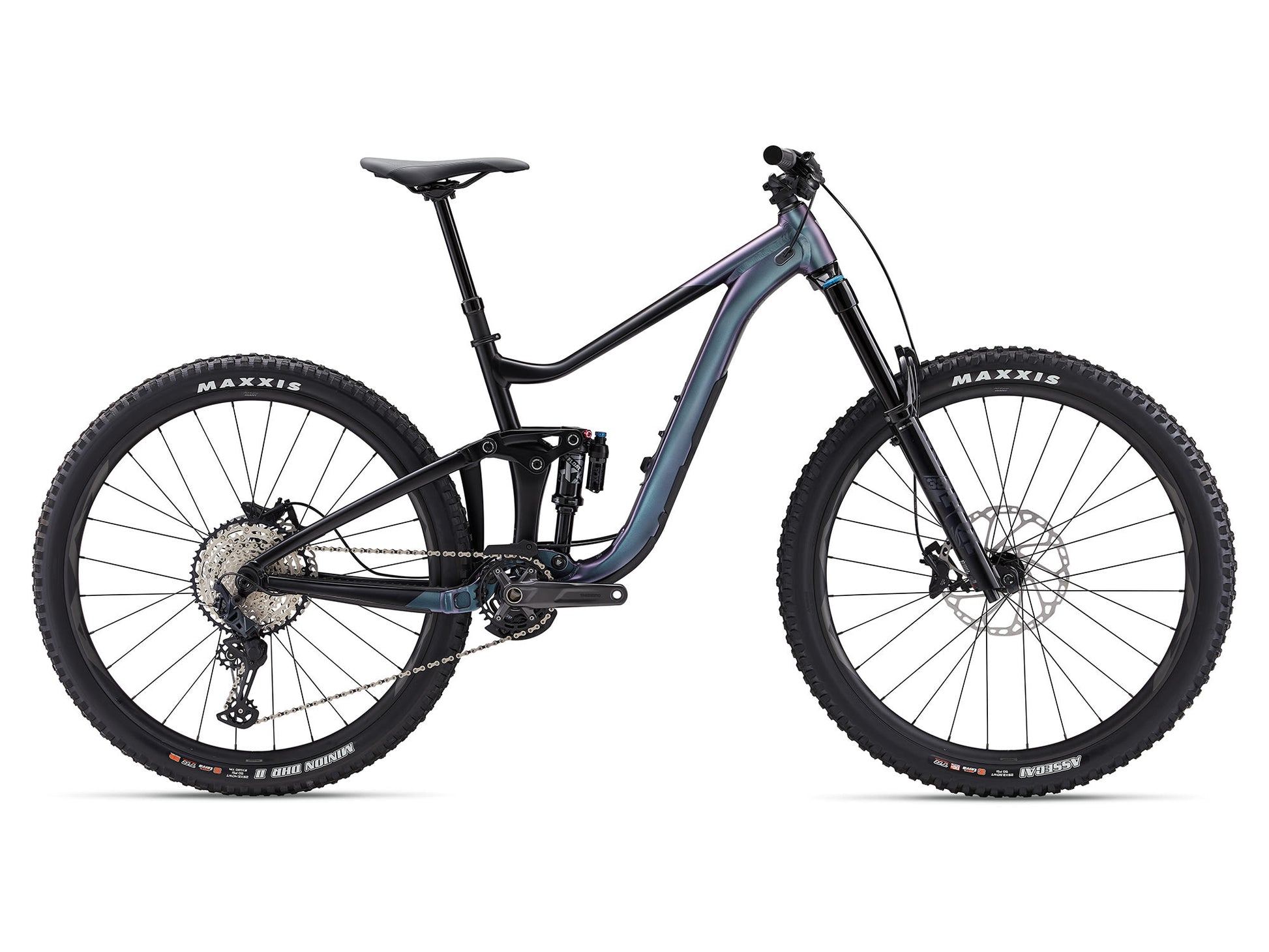

GIANT reign - blue dragonfly/black (2024)

A Maestro rear suspension system with 160mm of travel was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation).

Flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop depending on the frame size.

Riders can choose either the stock 29-inch rear wheel or switch to 27.5. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy way to adjust the bike’s handling.

SPECIFICATIONS

• Sizes
  S, M, L, XL
• Colours
  Blue Dragonfly/Black/Chrome
• Frame
  ALUXX SL-Grade Aluminium front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm chainline
• Fork
  Fox 38 Performance Elite, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
• Shock
  Fox Float X Performance Elite, 205/62.5, custom tuned for Giant
• Handlebar
  Giant Contact TR35, alloy, 35mm
• Stem
  Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm
• Seatpost
  TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
• Saddle
  Giant Romero
• Pedals
  N/A
• Shifters
  Shimano SLX SL-M7100, 1x12
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano SLX RD-M7100
• Brakes
  Shimano Deore BR-M6120, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm
• Brake Levers
  Shimano Deore BL-M6100
• Cassette
  Shimano SLX M7100, 10x51
• Chain
  Shimano
• Crankset
  Shimano MT512, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
• Bottom Bracket
  Shimano, press fit
• Rims
  Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
• Hubs
  [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
• Spokes
  Stainless steel
• Tires
  [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra , DD, TR tubeless
• Extras
  Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide

*PLEASE NOTE: ALL BIKES ARE LOCAL PICK UP ONLY FROM SALTER CYCLES*
