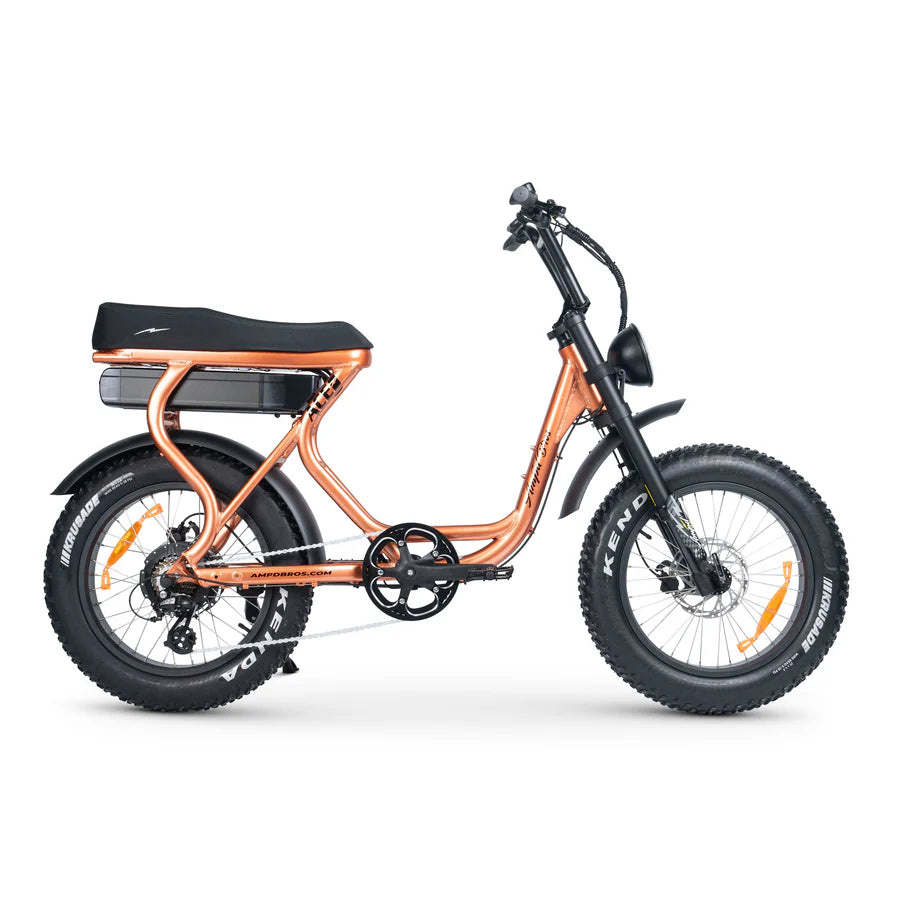

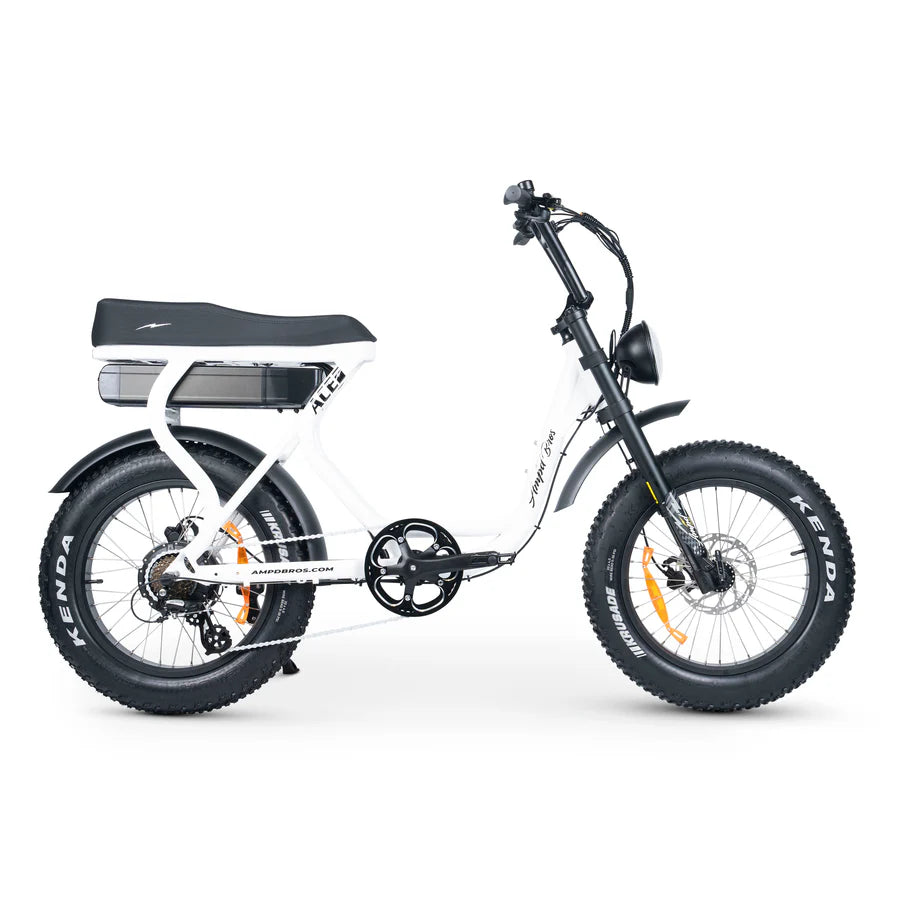

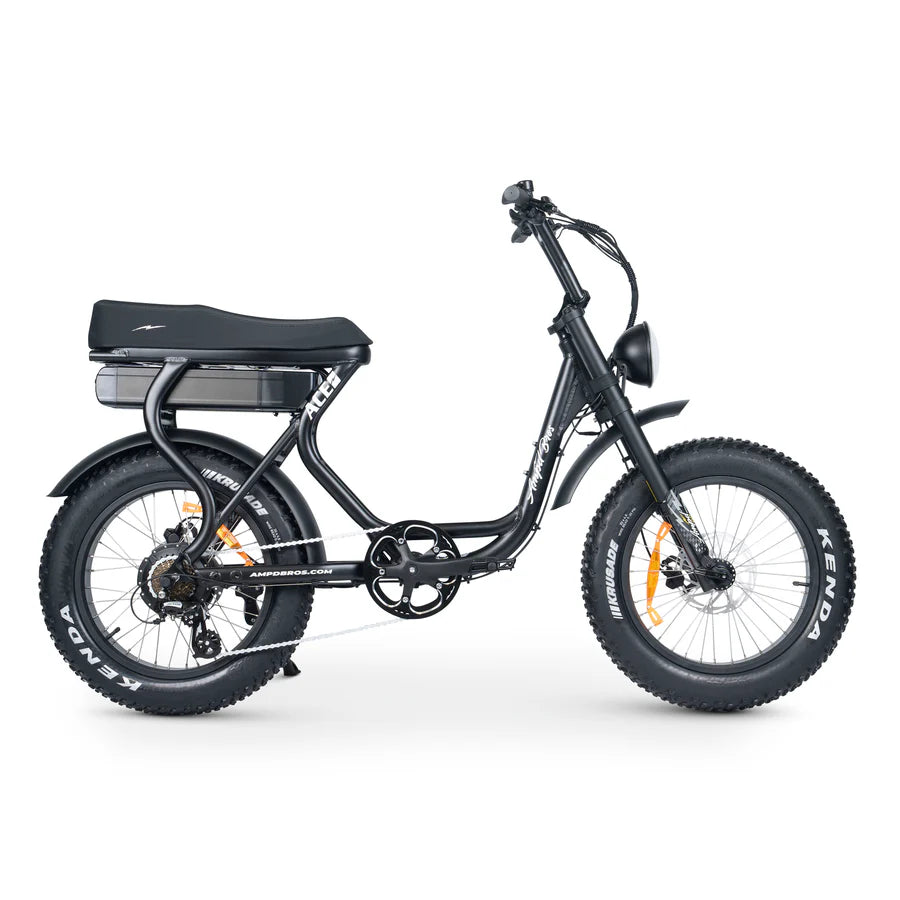

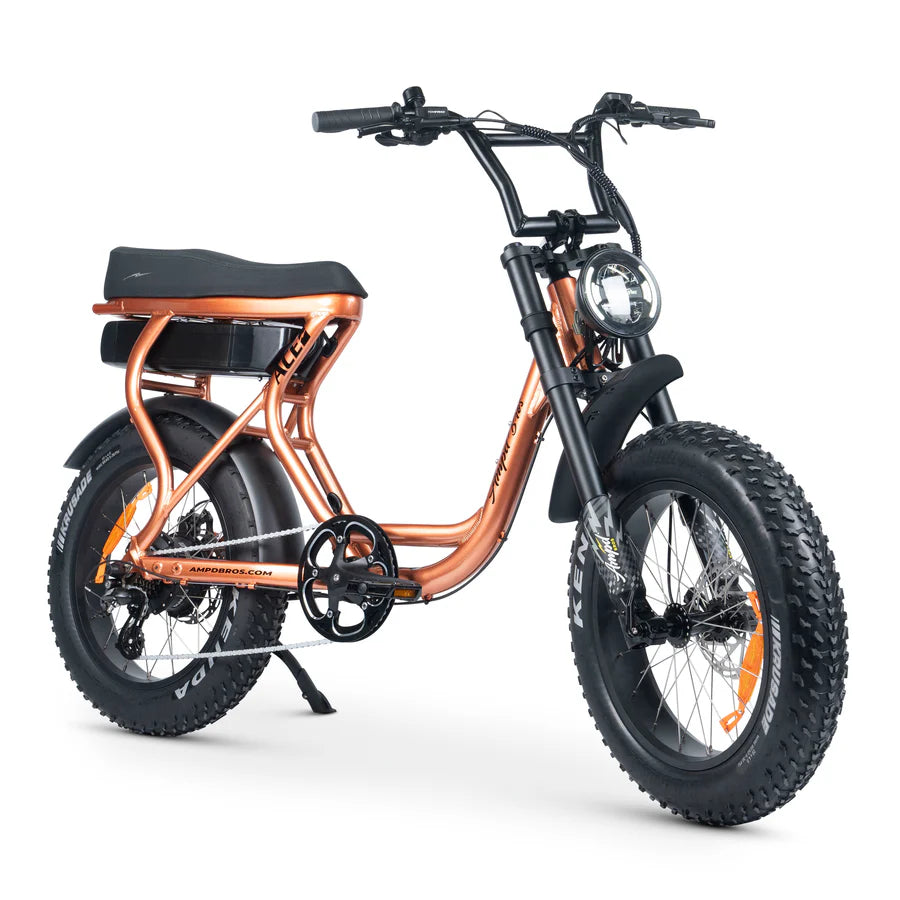

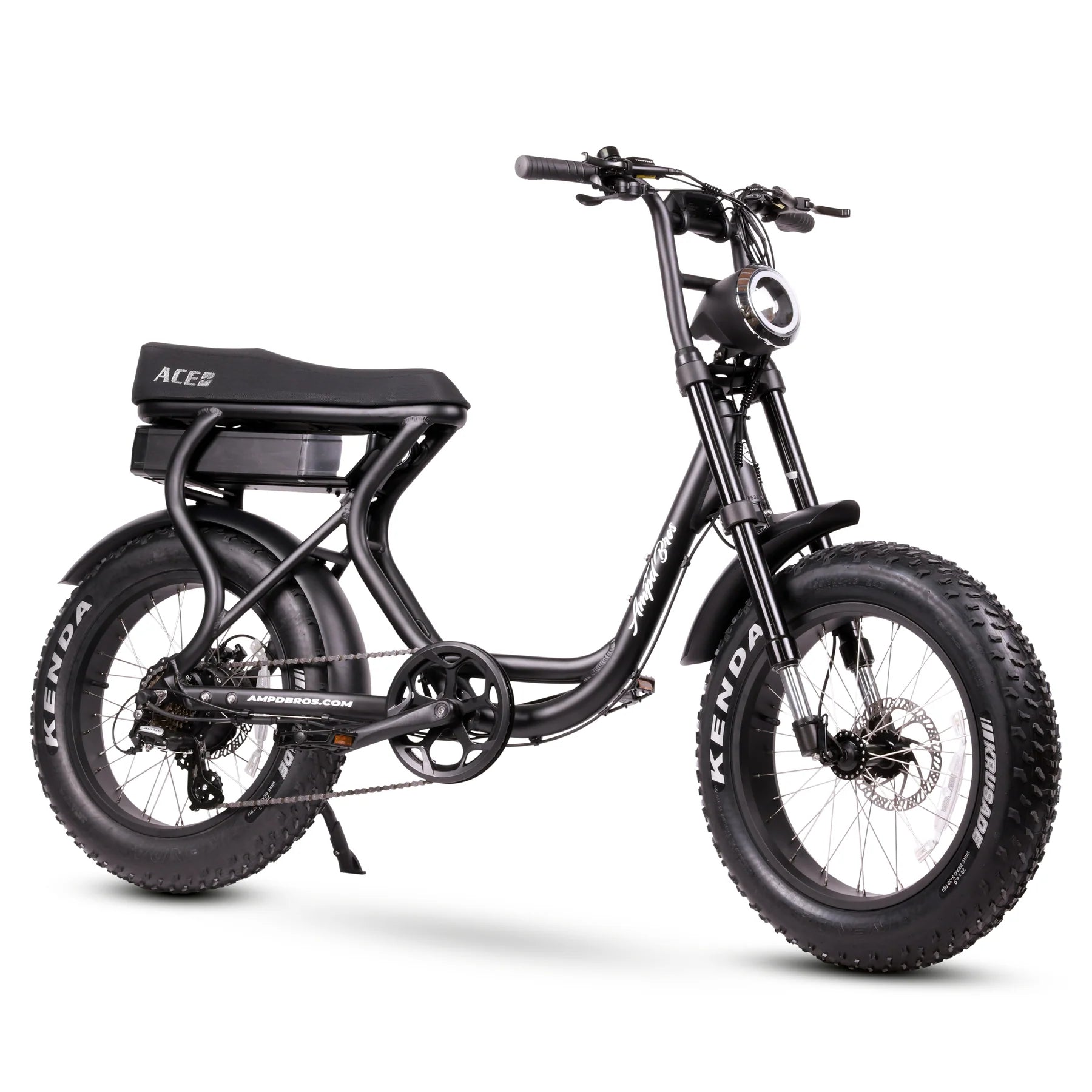

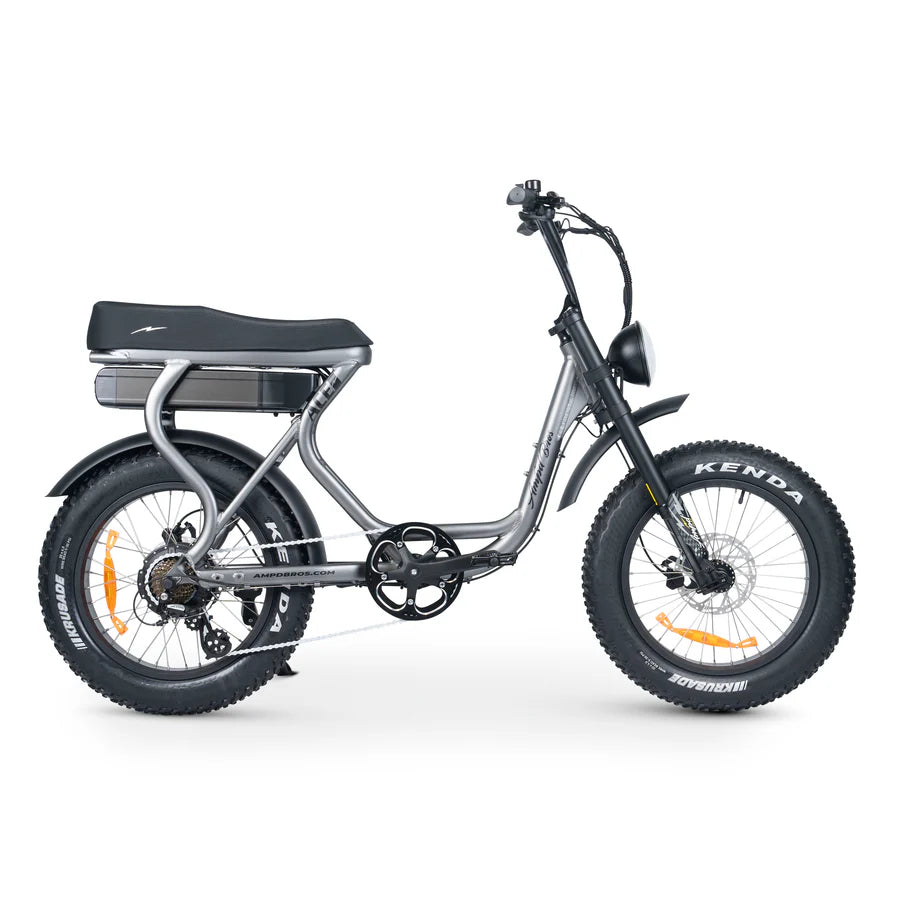

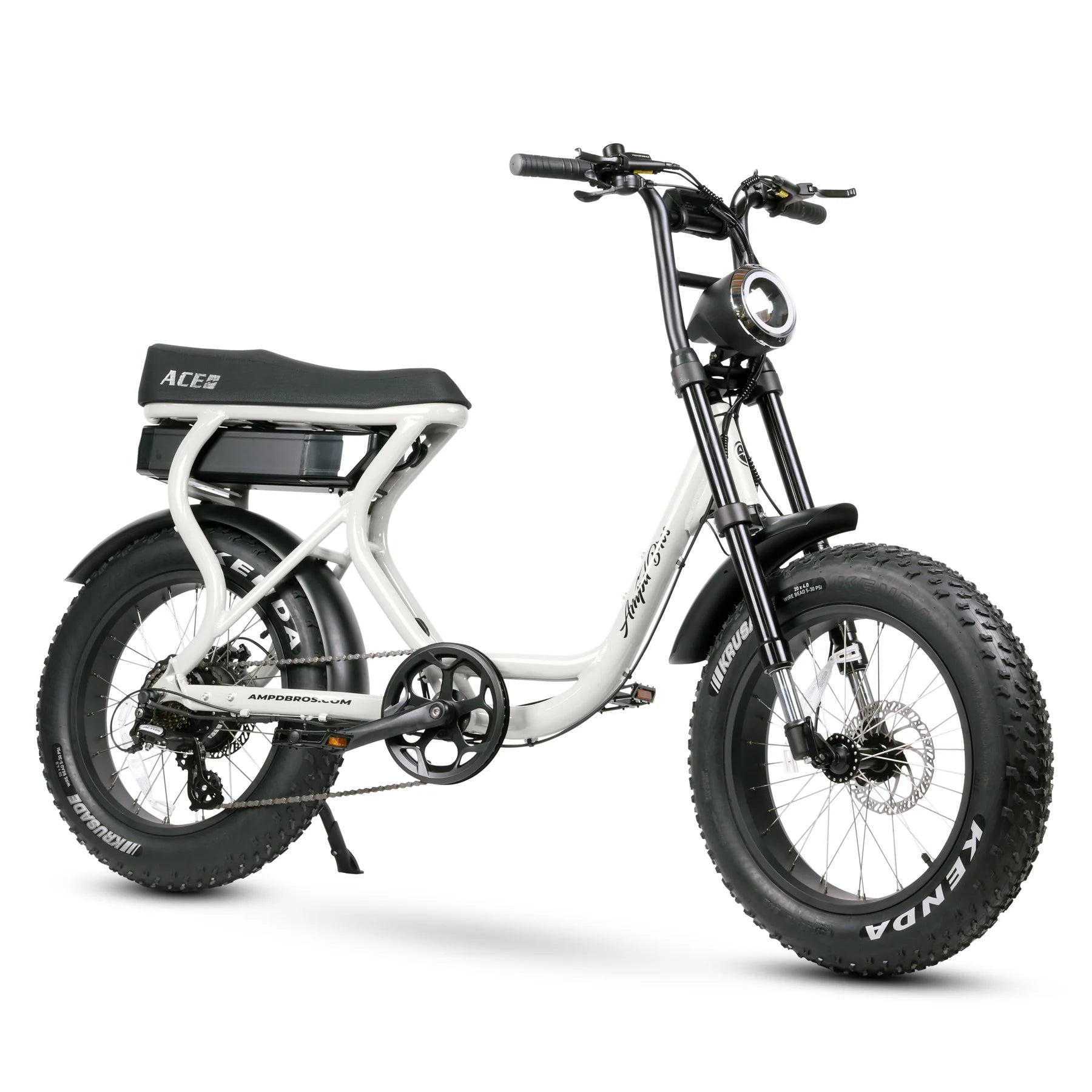

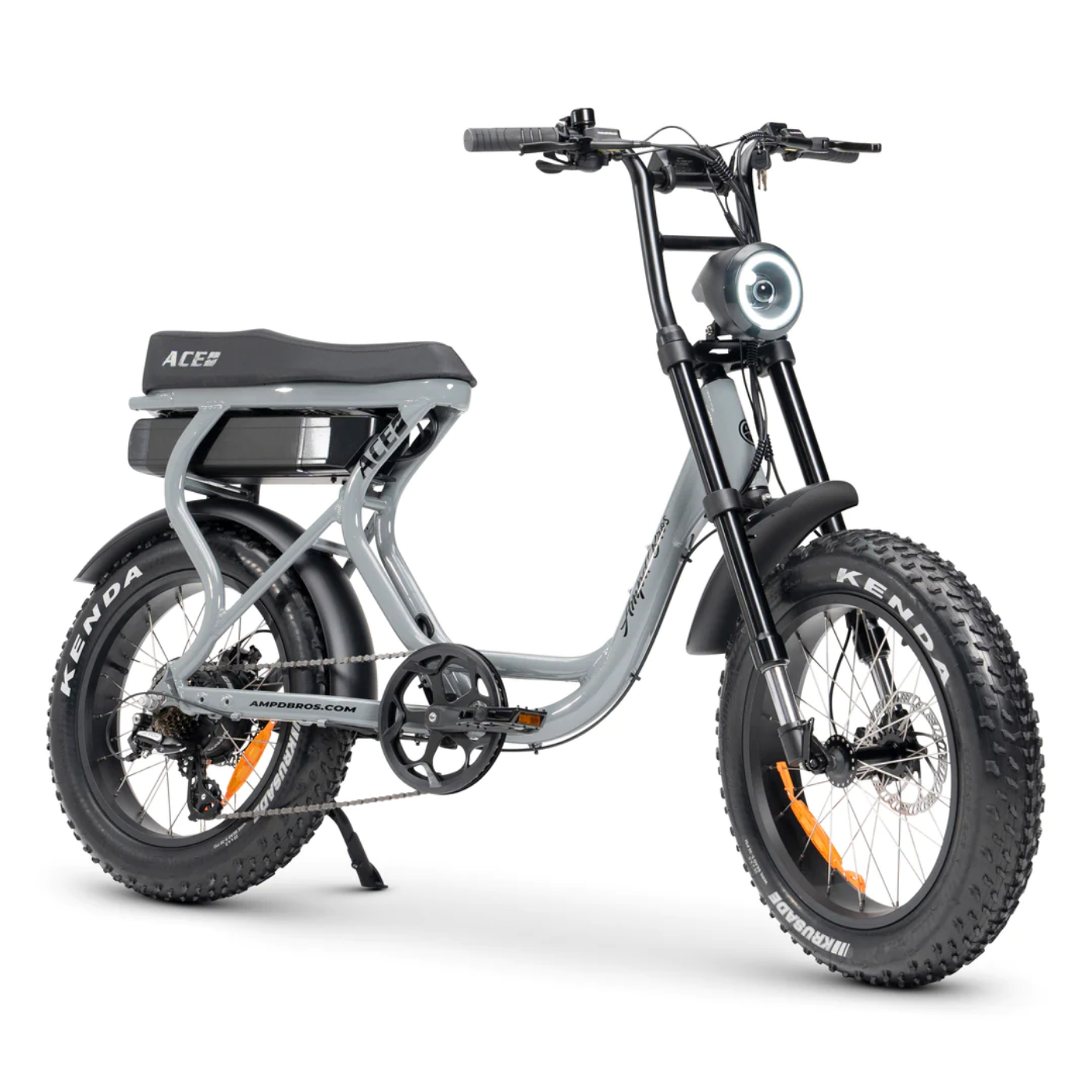

Ampd Brothers ace-s plus + electric bike
ABBIK-ASP-S4-TIT
*PLEASE CONTACT OUR STORE IF YOU REQUIRE SHIPPING, ADDITIONAL CHARGERS WILL APPLY AFTER CHECK OUT*
Description
Introducing the ACE-S Plus+ Electric Fat Tyre Bike – Elevate Your Adventure!
Unveiling the ACE-S Plus+, a high-performance, high octane variant of our ACE-S model that takes your riding experience to new heights. This upgraded version features front suspension forks, delivering a smoother ride across diverse terrains. Equipped with a larger more powerful 750W Bafang Rear Hub Motor, it boasts a higher top speed, allowing you to conquer every trail with ease.
Revamped and refined, the ACE-S Plus+ Electric Bike redefines your riding experience with its sleek Low Bar Step Through frame design, ensuring easy access and unparalleled comfort. Originating from our popular ACE-X model, the ACE-S maintains the robust construction that sets it apart.
Designed in conjunction with our in-house family team and continuously sought after since its debut in 2019, the ACE Bike continues to create waves nationwide.
Loaded with premium features and celebrated year after year as Australia's favourite fat tyre bike the ACE range boasts a Shimano 7 Speed Derailleur, vibrant colour options and a cutting-edge battery system with our Latest GEN3 Aluminium Battery which encompasses 21700 cells that are 30% larger than our competitors, paired with a Smart BMS for optimal performance and safety.
The ACE-S Plus+ takes performance up a notch with our Custom Master Control unit, providing top-tier power density and advanced motor control algorithms. Seamlessly integrating light controls, improving reliability and simplifying diagnostics, this bike is powered by Bafang's High Torque Motor, ready to conquer diverse terrains.
What's New for Series 4 ACE Plus+?
- New 52V 20AH Battery
- New Micro Intelligent Colour Display
- New Adjustable Front Fork & Handlebars
- New AB Signature Headlight
- New Colours for 2025
The ACE-S ensures no adventure is off-limits, accommodating two riders with its spacious seat. The removable Samsung Battery delivers an incredible 80km range on a single charge. From beaches to hills, dirt tracks to pavements, the ACE-S handles it all effortlessly. Opt for the Off-Road Throttle Kit for cruising ease, and embrace rapid gear shifts with the Shimano Rapid Fire shifter and Altus transmission.
Join the ACE revolution and unlock limitless possibilities with the ACE-S Electric Fat Tyre Bike – your ticket to exhilarating adventures awaits!
Checkout the Range of Options & Accessories for your New ACE Bike or need help customising your bike? Speak to our Friendly Team on what works best for you.
ACE & ACE PLUS+ SERIES 4
Speed & Range
- Range Standard Models 60km+
- Range Plus Models 80km+
- Speed Standard Models 25km/h (or Unlock up to 40km/h for Private Property Use)
- Speed Plus Models 25km/h (or Unlock up to 45km/h for Private Property Use)
Battery
- Standard Models 52V / 780Wh, 15AH
- Plus+ & Rally Models 52V / 1,040Wh, 20AH
- Samsung Premium 21700 Lithium cells
- Battery is removable and can be charged in bike or separately.
Motor
- Bafang Single Rear Hub Limited to 250W High Torque Motor
- ACE Off Road Unlockable to 500W / Peak Output 750W+
- ACE Plus+ Off Road Unlockable to 750W / Peak Output 1,000W+
Ride Modes
- Mode 1 Pedal Assist mode: Adjustable pedal assist performance settings from 1-5 or can also be changed to 1-3 or 1-9
- Mode 2 Walk mode: Idles bike up to 6km/h to assist with moving bike by holding the "-" button on the keypad
- Mode 3 Throttle mode: Available when Optioned with the Off Road Throttle Kit
Features
- Hill Ability Up to 15º Degree / 25% Incline PAS
- Seat Custom Large Black Dual Seat for 2 Riders
- Warranty 2 Years (1 Year on Batteries)
- Lights Front LED 220lm Headlight with DRL
- Lights Rear LED Brake Light inbuilt to battery pack
- Grips Black Velo Wide Comfort
- Bell Yes
Brakes
- All Models Tektro Hydraulic Disc
- Discs 180mm
- E-Brakes Yes Motor Safety Cut Off
Display
- Colour Micro LCD Multi-Function with ODO, Trip, Battery Level, Speed etc
Controller
- Ampd Brothers Custom - Best-in-class power density and state-of-the-art motor control algorithms.
Drivetrain
- Transmission Shimano 7 Speed with Rapid Fire Micro Shifter
- Derailleur Shimano Altus
- Pedals Wellgo Alloy - Black
- Chain KMC Z Series High Performance
Construction
- Frame Aluminium - "X" Step Over or "S" Step Through Low Bar Designs
- Handlebars Aluminium Motorcycle Inspired with Adjustable Height
- Fenders Matte Black Aluminium
Suspension
- Standard Models No Suspension
- Plus+ Models Front Independent
Wheels & Tyres
- 20x4.0" Kenda Krusade Fat Mud Tyres
Charging
- 7-8hrs 15Ah Batteries with Standard 2A Included Charger
- 9-10hrs 20Ah Batteries with Standard 3A Included Charger
- Optional 5A Fast Charger Available for 2.5x Faster Charging
Dimensions
- Overall Length 1,750 mm
- Handlebar Height 1,140 - 1,190 mm
- Handlebar Width 660 mm
- Seat Height 810 mm Fixed Height
- Seat Length 600 mm
- Ground Clearance 270 mm
- Wheel Base 1,160 mm
- Rider Height Ideal for Riders up to 200cm Tall
Weights
- N.W of 15Ah Battery 4.34 kg
- N.W of 20Ah Battery 5.12 kg
- N.W of Standard ACE + Battery 32.3 kg
- N.W of ACE Plus+ Battery 36 kg
- Max Loading 180 kg
Inclusions
- In Box Bike, Battery, Charger, Front Headlight, Basic Tool Kit, Manual, Pedals, Fenders, Seat & Kick Stand.
*Range Achievable may vary based on loading, motor use, throttle/pas, terrain, weather conditions and many other factors.
